Datum Canopy

8" x 4" x 4" x 1" Side Gutter x 24’

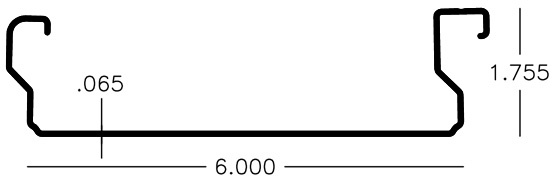

6.014" x .065" Self Mating Gutter Pan x 24’

3' Adjustable Canopy Arm - Female to Female Coupling

Wall Mount Plate

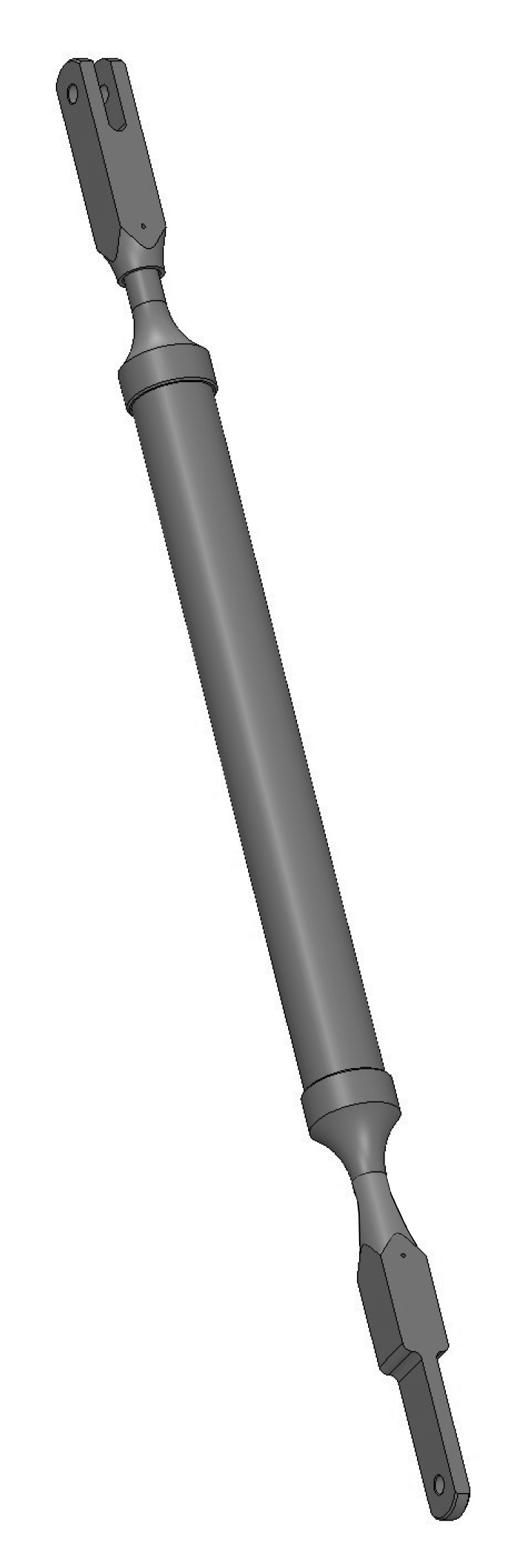

3' Adjustable Canopy Arm - Female to Male Coupling

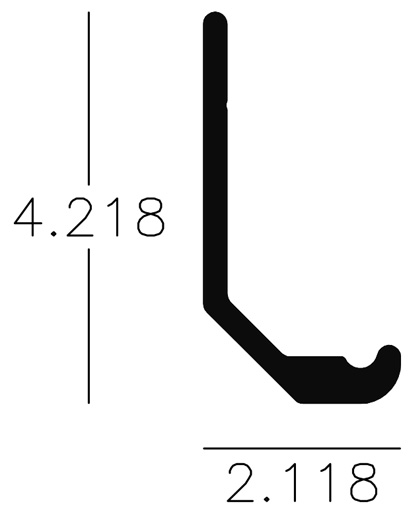

2.118 x 4.218 Upper Key x 24’

4.875 x 2.375 Lower Key x 24’

8" x 4" x 4" x 1.5" Front Gutter x 24’

3” x .250" SQUARE TUBE SUPPORT BEAM x 24’ (6061-T6) - 3.3 #/ft

4' Adjustable Canopy Arm - Female to Female Coupling

4' Adjustable Arm - Female to Male Coupling

5' Adjustable Canopy Arm - Female to Male Coupling

5' Adjustable Canopy Arm - Female to Female Coupling

5.25" x 3.935" Beam x 24’

8" x 4" x 4" x 1.5" Back Gutter x 24’
